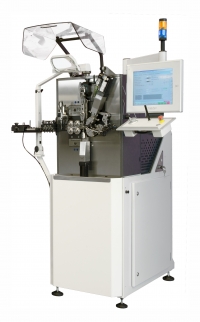

Станок для навивки пружин сжатия FX 10

Сделать запрос на FX 10

High-speed coiler for the production of compression springs only RH, equipped with the latest generation Numerical Control for the direct control of 6 axes (wire feed, diameter, vertical pitch, horizontal pitch, retracting mandrel, cutter) with one micron resolution.

  • Quality: unique design, rational and sophisticated, materials and craftsmanship of the highest quality, best commercial components of the market, extreme attention to detail.
  • Reliability: maximum simplification, significant reduction in the number of mechanical parts, improved maintenance and easy to use, greater protection of electronic components.
  • Performances: lower mechanical inertia, less parts subject to wear and play, direct commands to all tools, hardware and software with superior performance.
  • Cost Efficiency: lower purchase and maintenance costs, increased productivity, reduced footprint, optimized power consumption.

Standard accessories:

  • Touch screen display
  • Electronic hand-wheel for all axes manual control
  • Software with auto programming (PG) and graphic programming (2D)
  • Wire feed unit with 4 feed rollers
  • Single piece cutter-mandrel unit
  • Quick cutting type change over (straight, rotative or twist cut)
  • Electronically controlled feed roller pressure
  • Automatic lubrication pump
  • Automatic grease lubrication pump
  • Magnifying lamp
  • I/O module for additional custom function programming
  • Programmable auto shut-off (energy saving)
  • Electric cabinet with air conditioner
  • UPS unit with battery

Технические характеристики

Параметры
Wire Range [mm] 0,15-1,1
Feed Rollers 4
Max. Spring Outside Ø [mm] 20
Min. Coiling Ratio [D/d] 4
Max. Feed Speed [m/min] 200
Max. Feed Length limitless
Installed Power [kw] 10
Absorbed Power [kw] 7,5
Net Weight [kg] 750

Производитель: Simplex Rapid
Сделать запрос на FX 10

Accessories on request :

  • Axes for spring initial tension control (international patent)
  • Production control with videocamera and backlight (SPC)
  • Sorting chute with 2/3/5 ways
  • Double action wire cleaning device complete with micro lubrication programmable pump
  • Leica stereoscopic magnifier (40x) complete with quick positioning system
